SCAFFOLD REPLACEMENT PARTS
PLATFORMS
Nu-Wave platforms are 5/8" thick, 7-ply exterior grade with steel banding completely surrounding the platform. There's no need for steel bracing on the underside to support an inferior plywood.
Platforms come in both CLASSIC and ELITE models.
PP-4: 4 ft. Platform 28.5" W x 46.25" L
Use with #440 or #640 scaffolds.
Shipping Weight: 18 lbs.

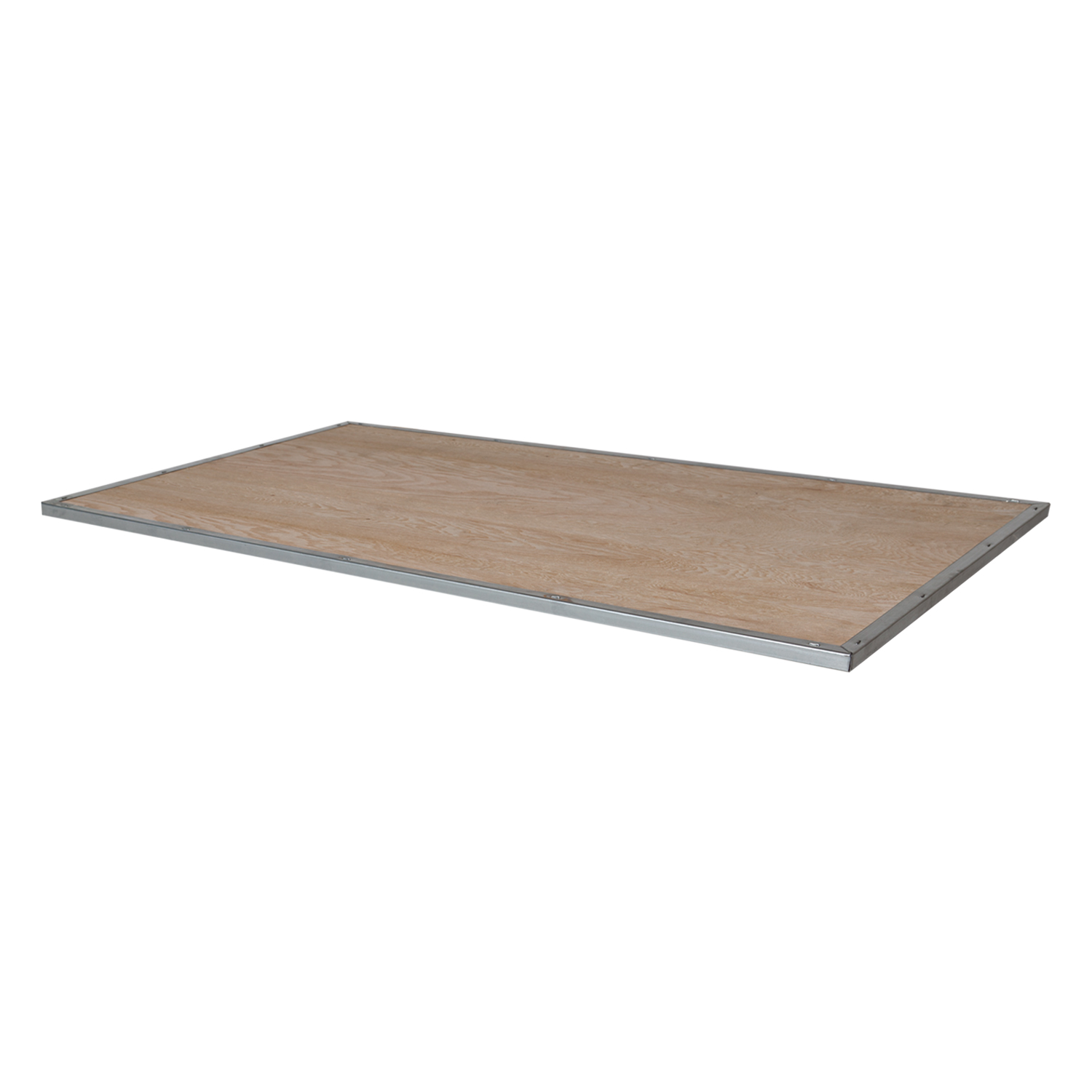

PP-6: 6 ft. Platform 28.5" W x 70.25" L
Use with #460, #660 scaffolds
Shipping Weight: 27 lbs.
PP-8: 8 ft. Platform 28.5" W x 94.25" L
Use with #480, #680 scaffolds
Shipping Weight: 37 lbs.
TRUSSES
PT-4: 4 ft. Adjustable Truss (2 required)
Use with #440, #640 Scaffolds
Shipping Weight: 18 lbs.

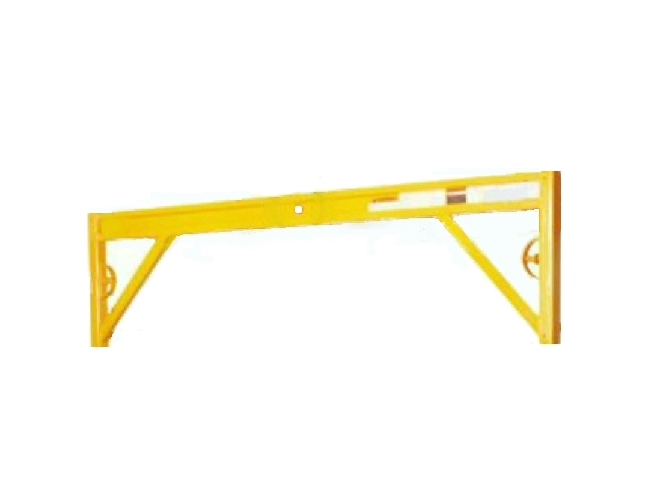

PT-6: 6 ft. Adjustable Truss (2 required)
Use with #460, #660 Scaffolds
Shipping Weight: 21 lbs.
PT-8: 8 ft. Adjustable Truss (2 required)
Use with #480, #680 Scaffolds
Shipping Weight: 25 lbs.
CASTERS
Classic Standard Caster

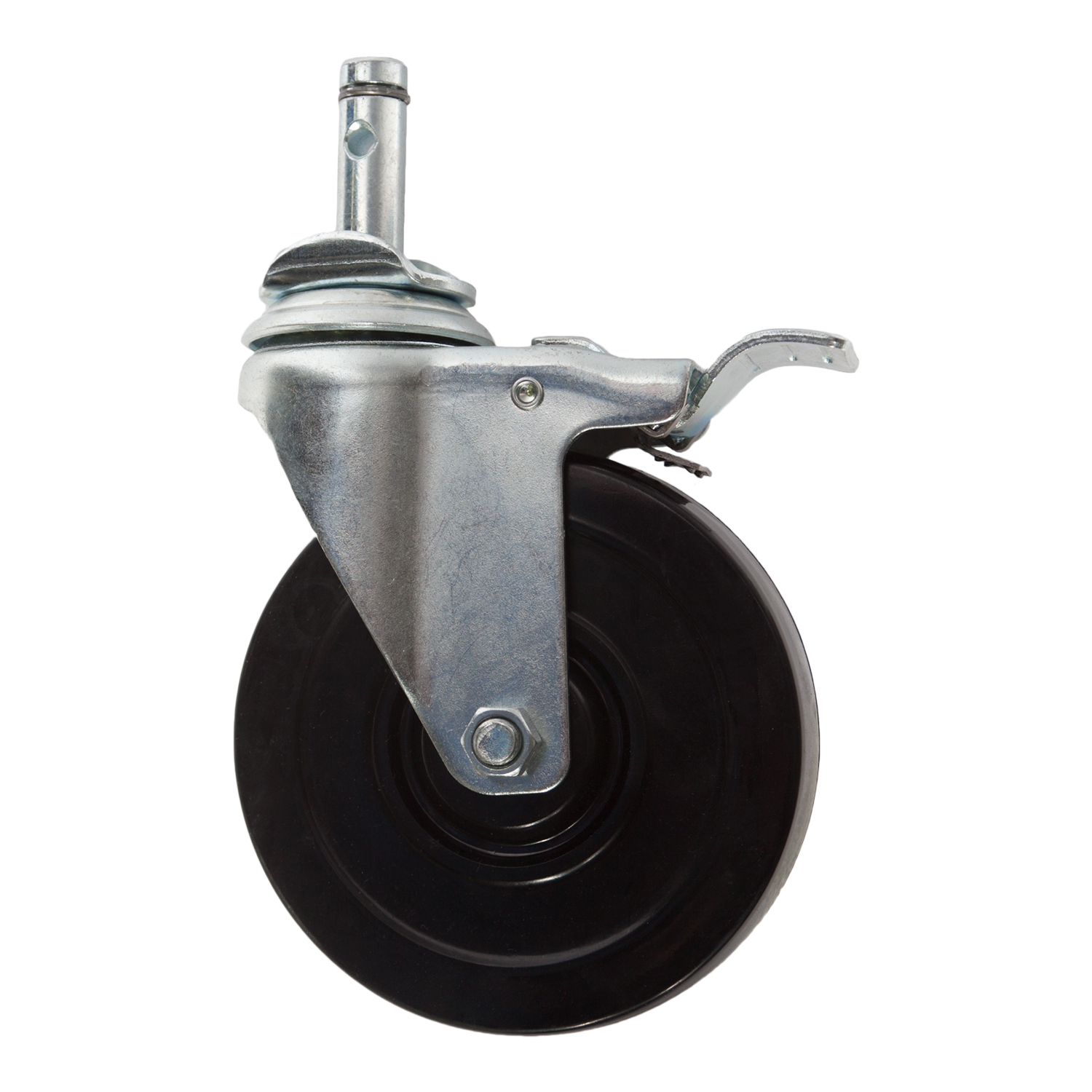

PC5B-S: 5” Silverline Locking Caster
Elite Heavy Duty Caster

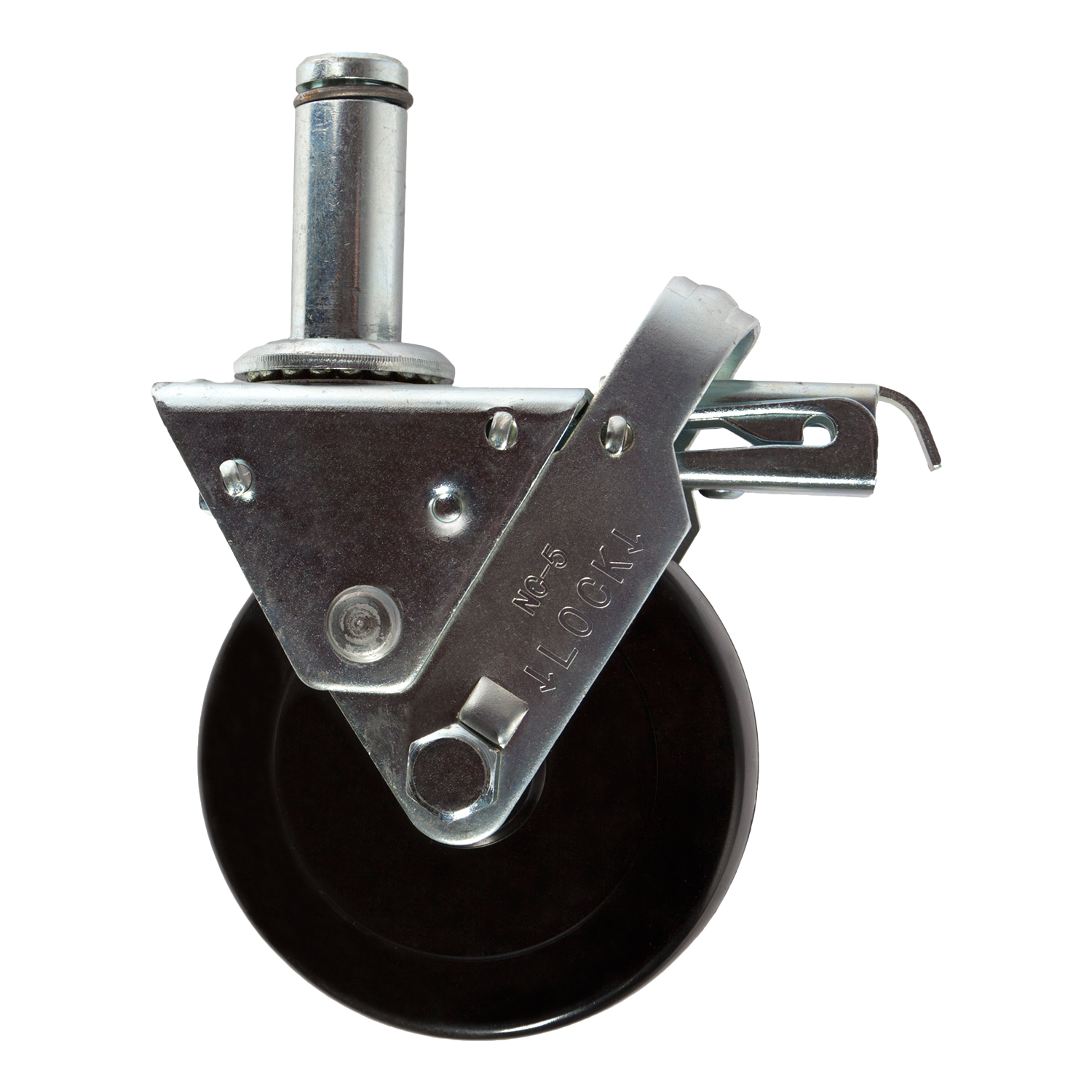

PIC-5: 5” Locking Caster
MISCELLANEOUS PARTS

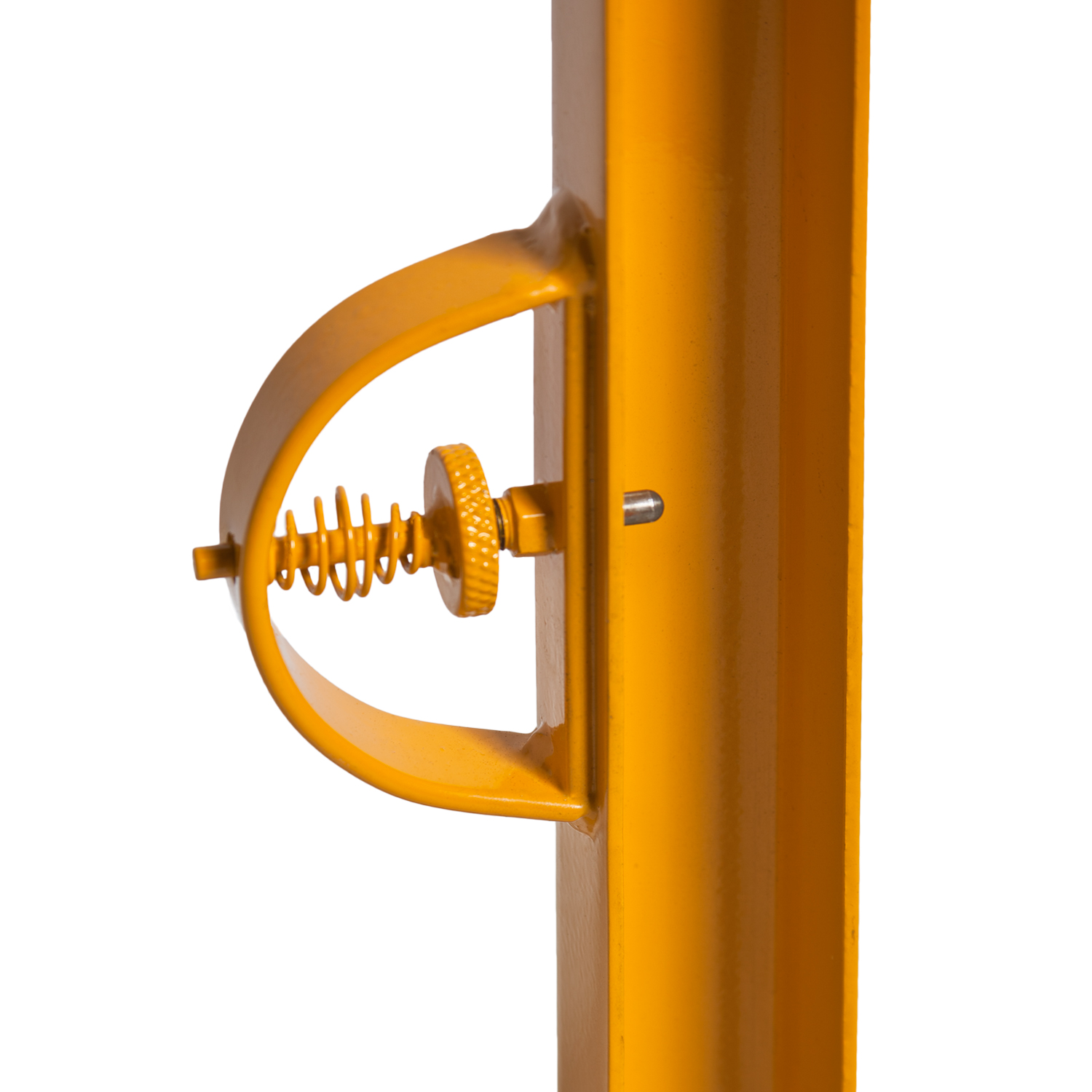

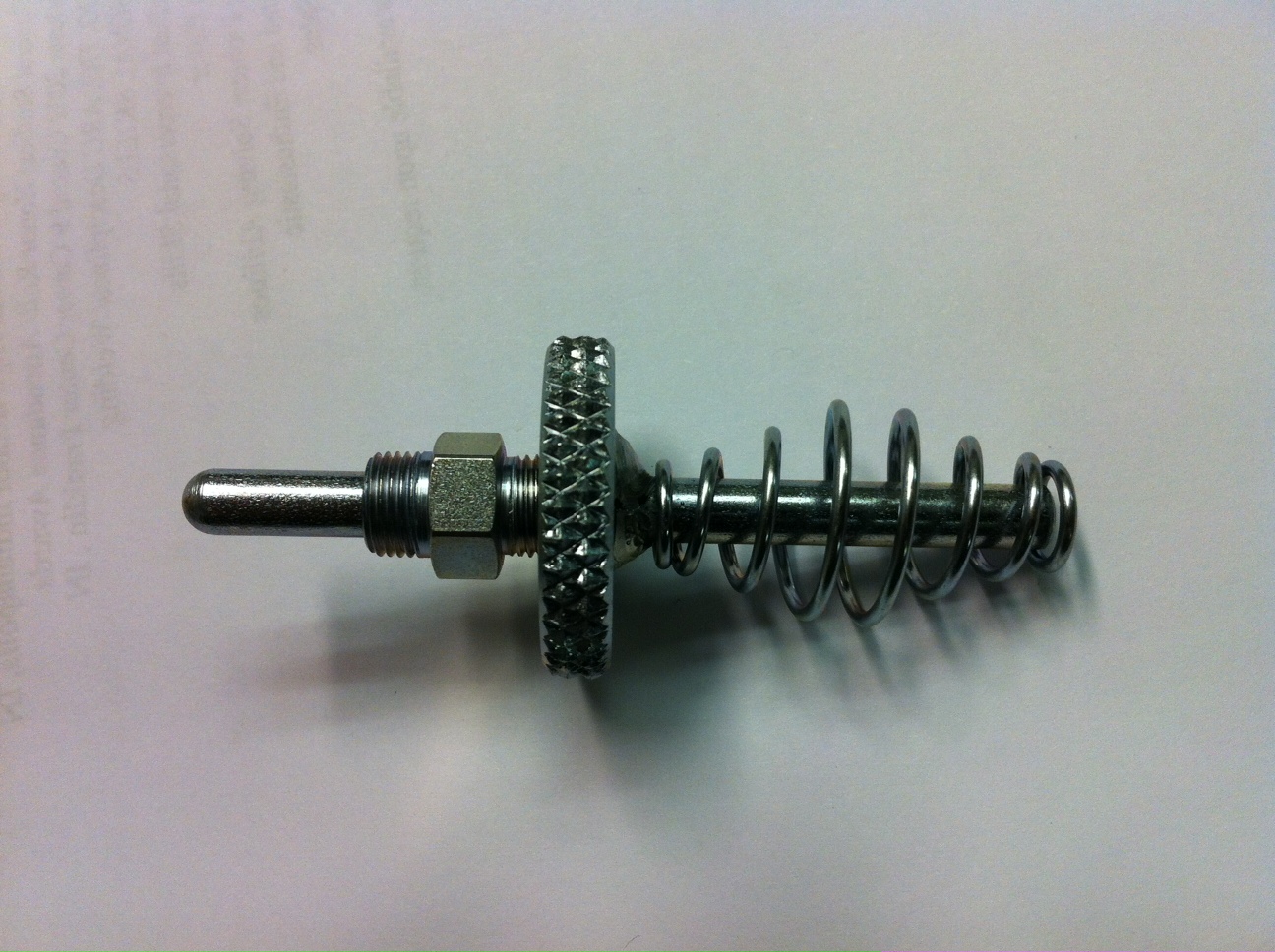

PSNK: Positive Engagement Lock Kit -- replacement pin, spring, nipple kit for use on trusses, outriggers and special brackets

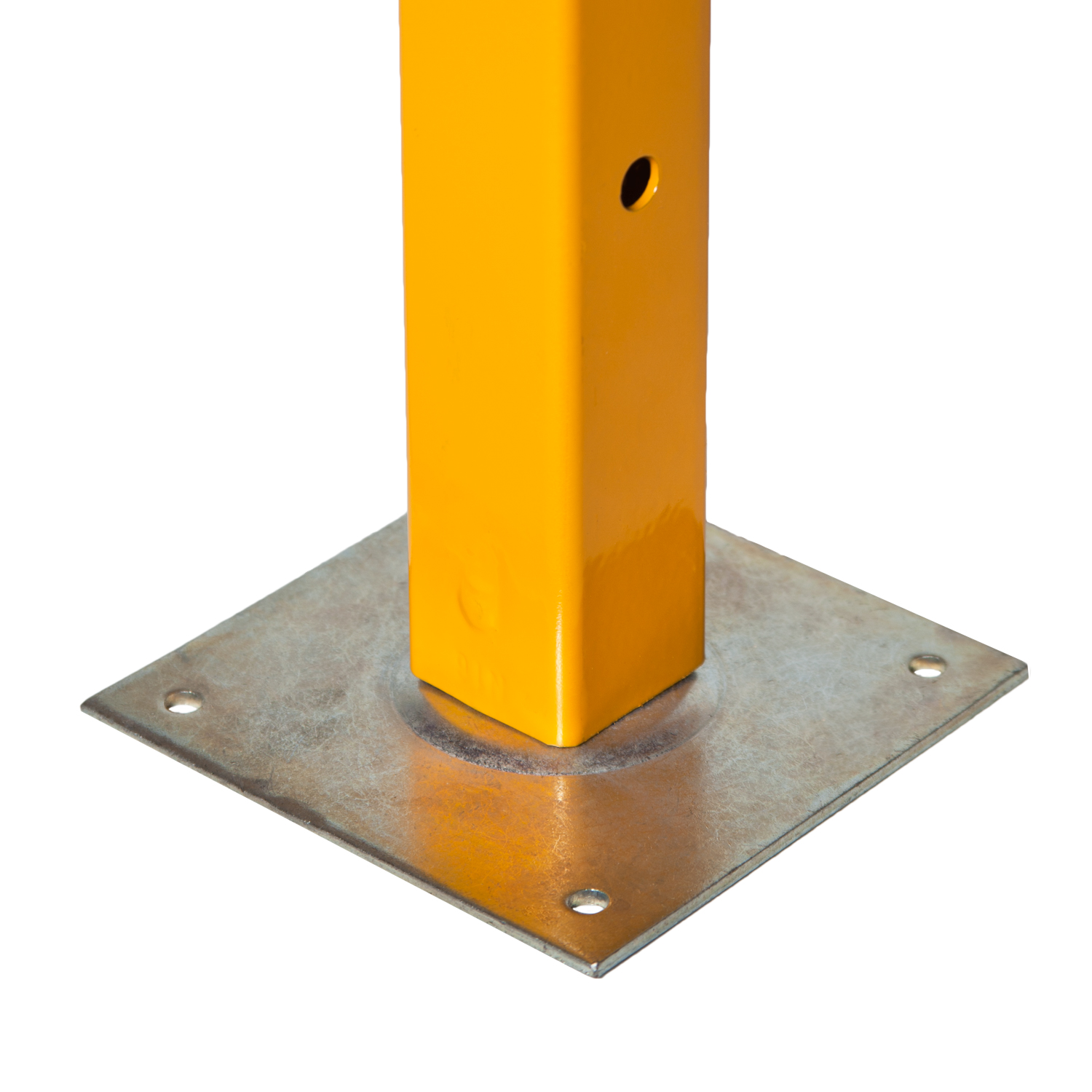

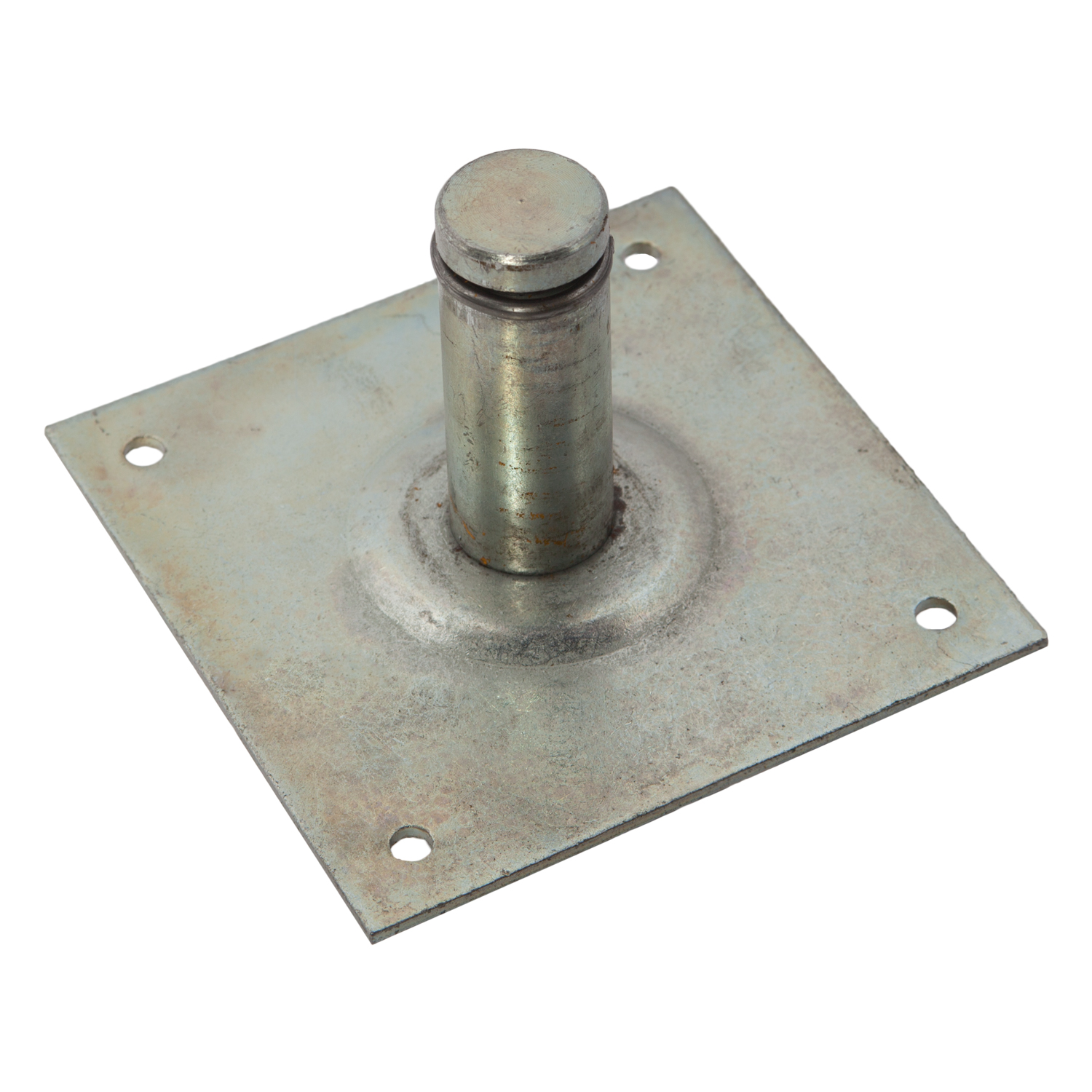

PBP: Base Plates -- 5" x 5"
Ship Weight: 2 lbs.PAINT: Yellow Touch-Up Paint (12 oz. spray can)
Nu-Wave Green Touch-Up Paint (12 oz. spray can)
Call Nu-Wave Manufacturing at:
1-800-428-7200 or
e-mail us at:
for information on a Distributor near you

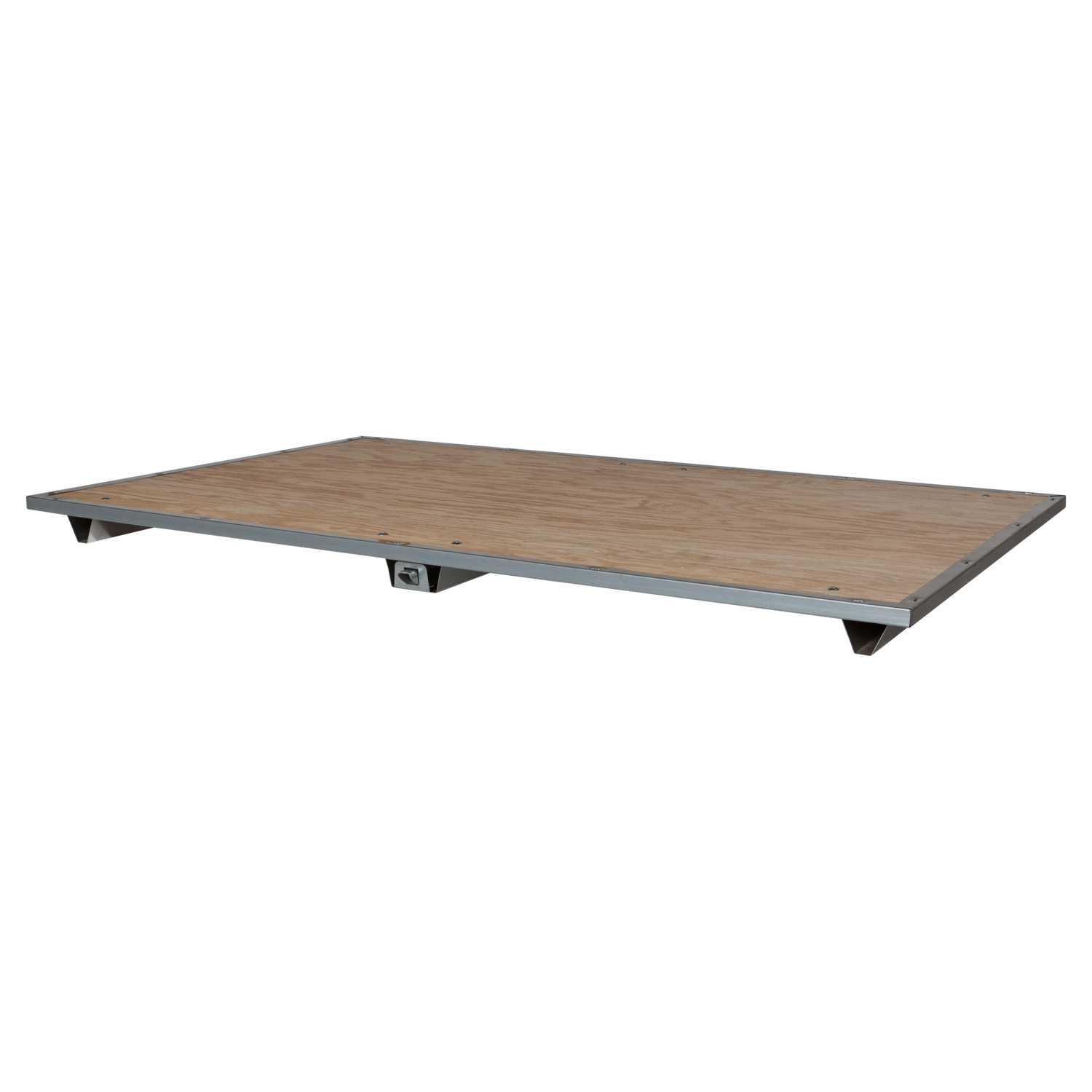

ELITE PLATFORM FEATURES:

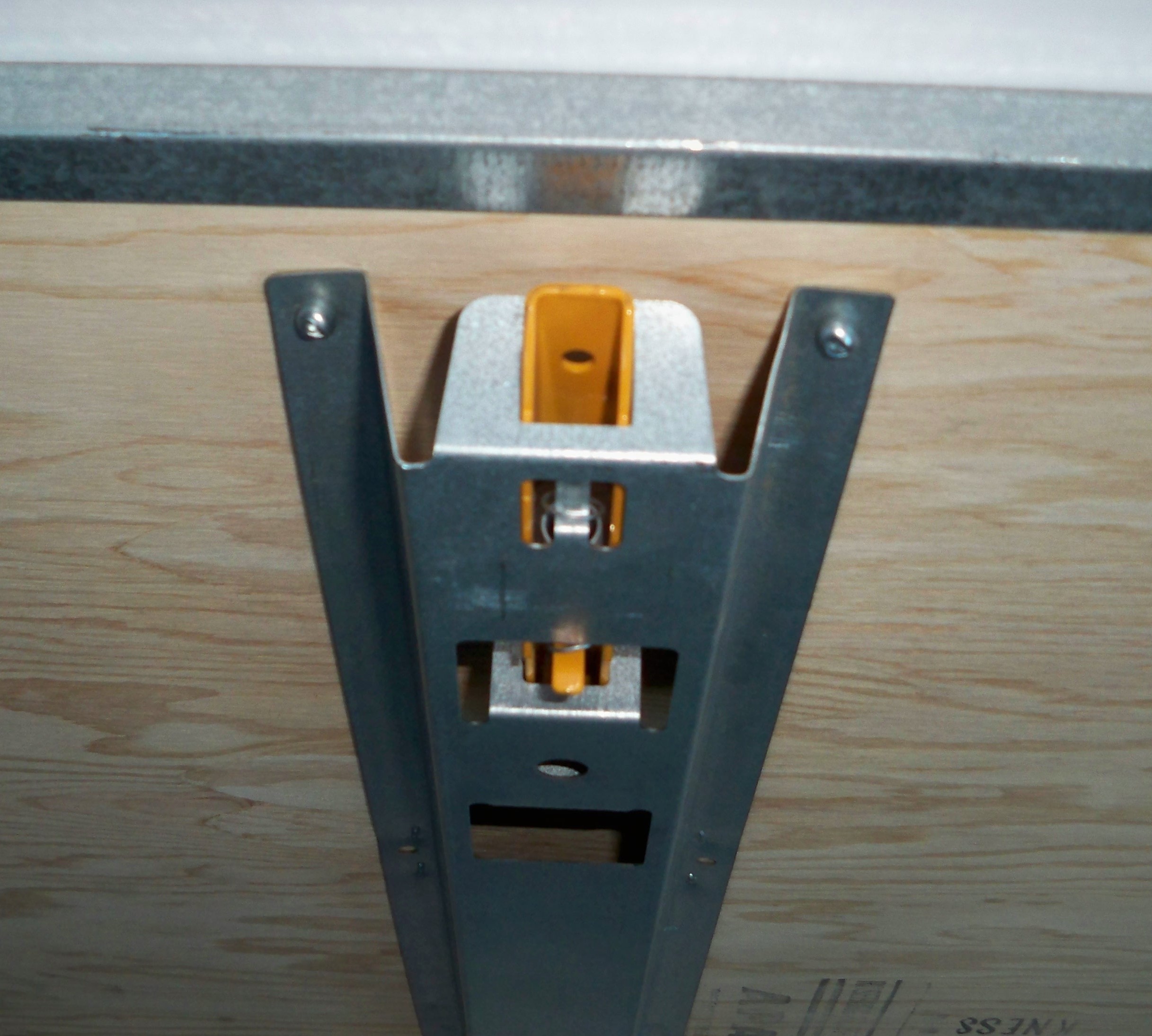

Elite Models come with an Automatic Positioning Mechanism
PL-1/2: 1/2 Ladder
CLASSIC PLATFORM FEATURES:
Classic Models come with Corner Truss Brackets for manual positioning into the Trusses, as Shown Below
Classic Platform Shown Above

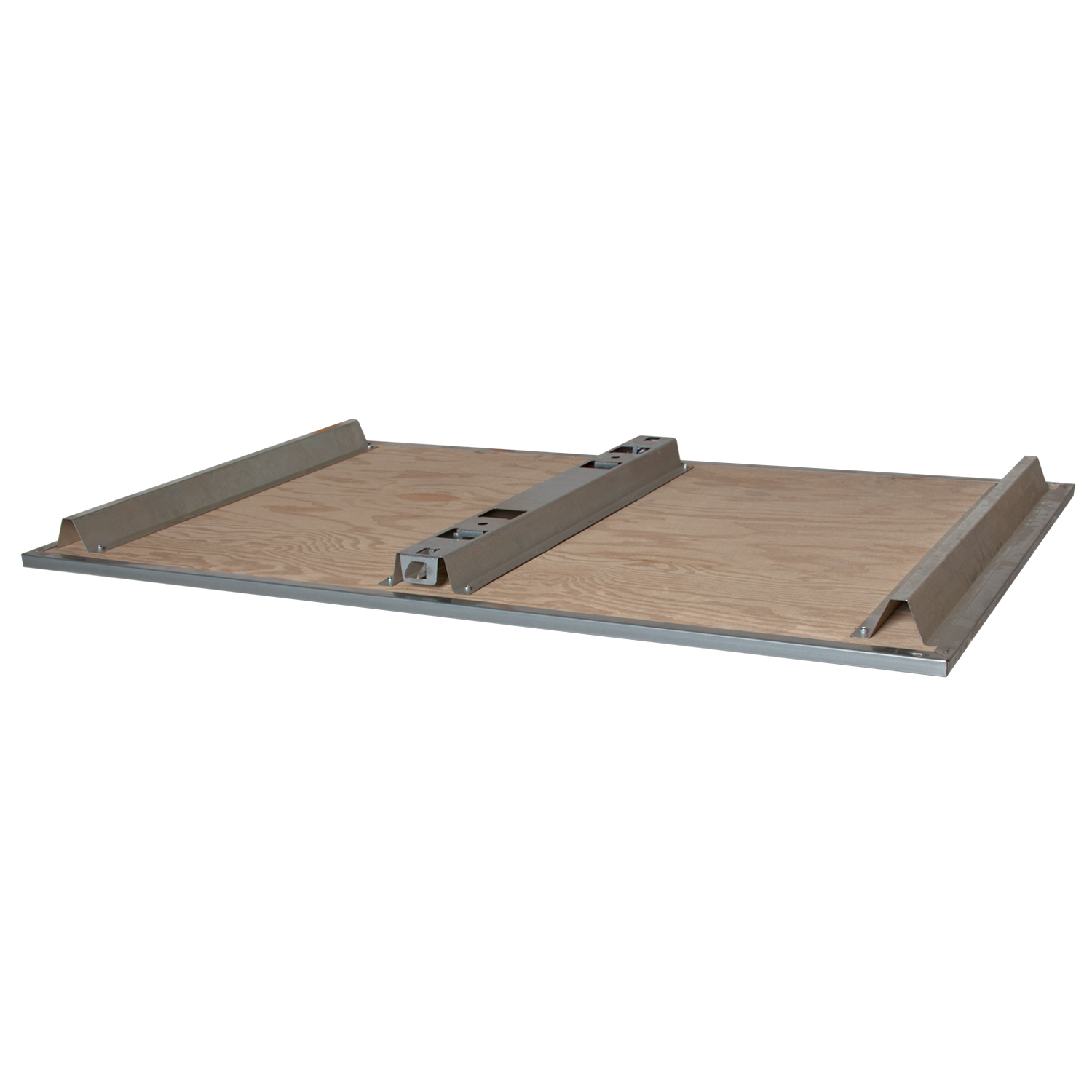

Elite Platform Shown Below
LADDERS

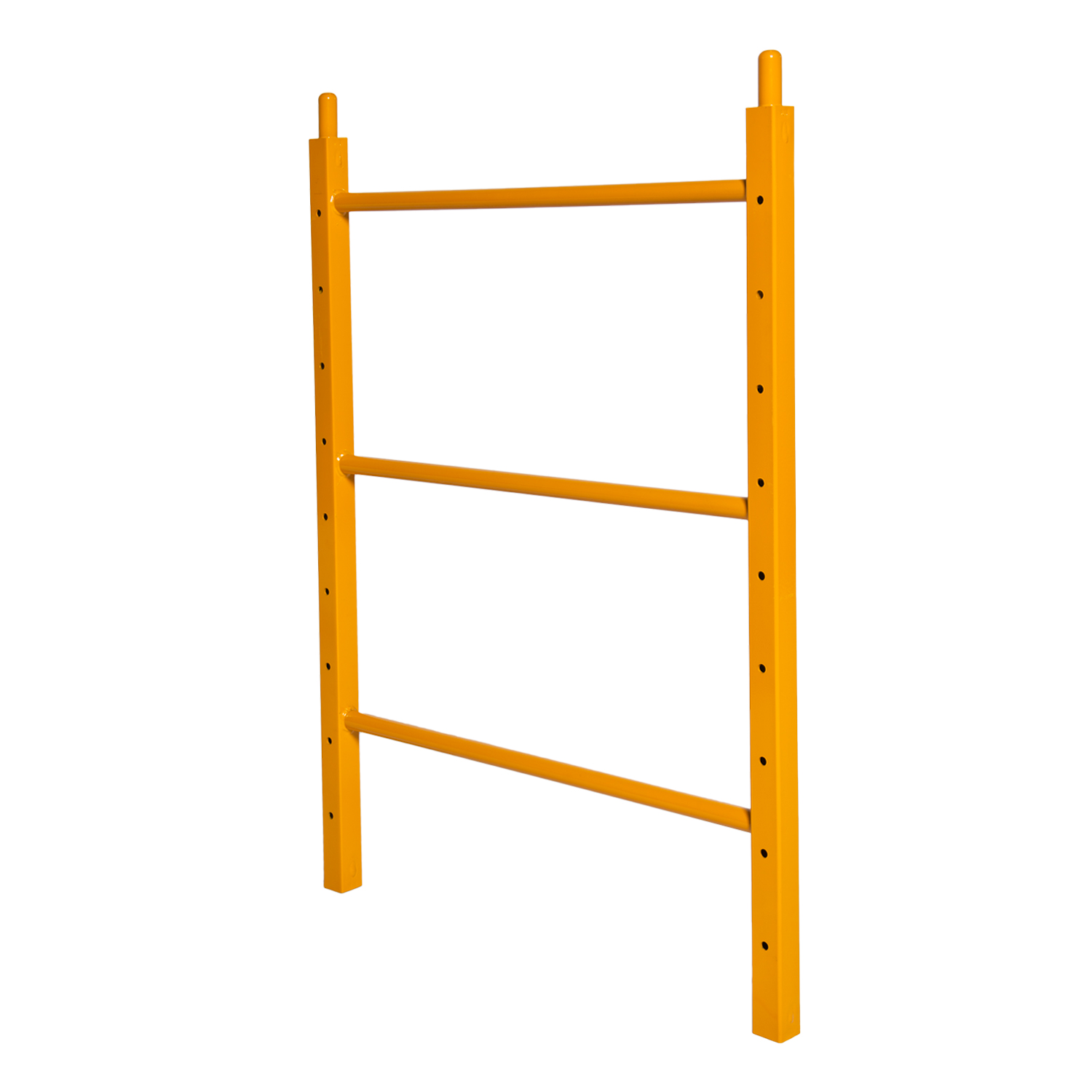

PL-1/2: 40" high, 3 rung ladder (2 required)
Shipping Weight: 18 lbs.

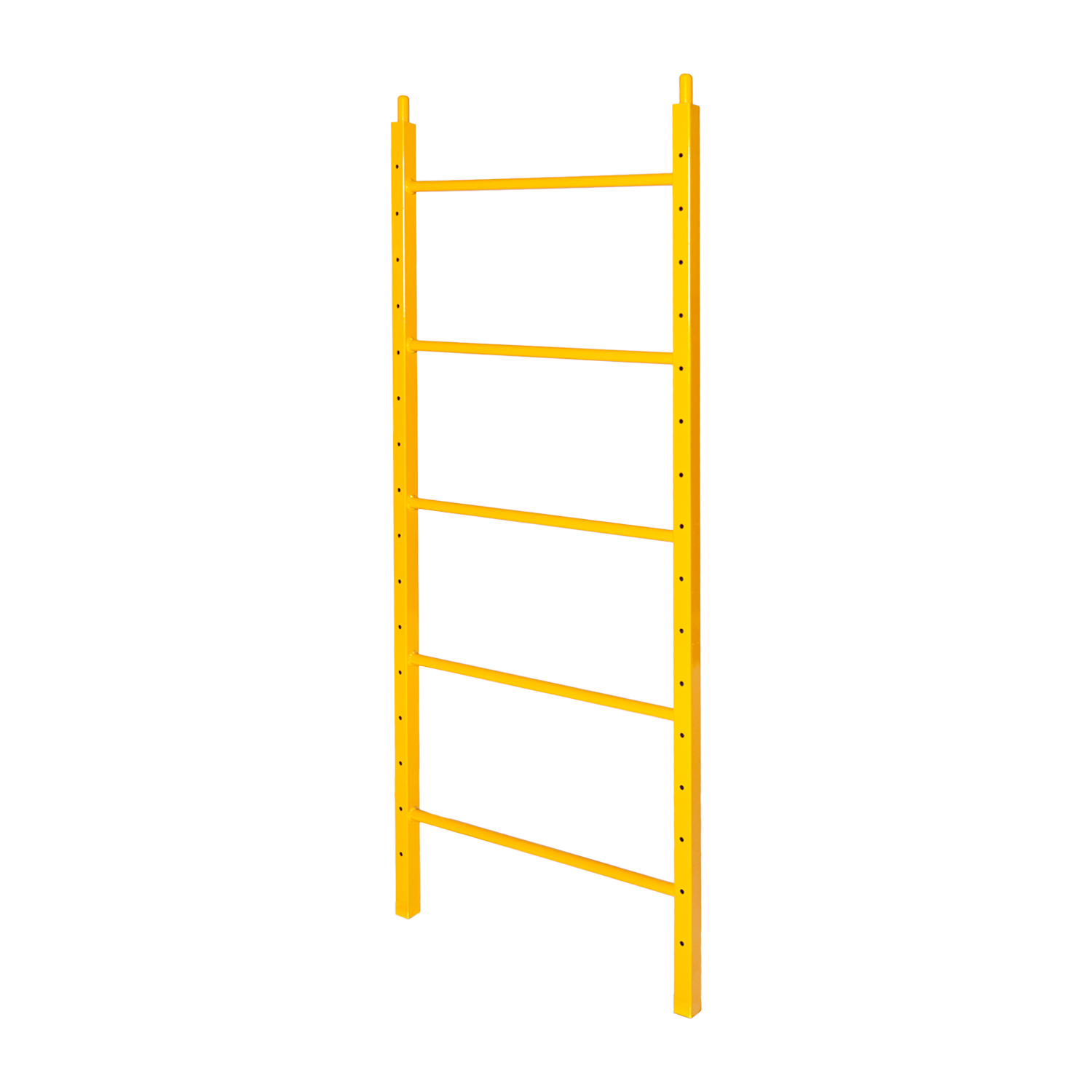

PL-6: 69.5" high, 5 rung ladder (2 required)
Shipping Weight: 28 lbs.

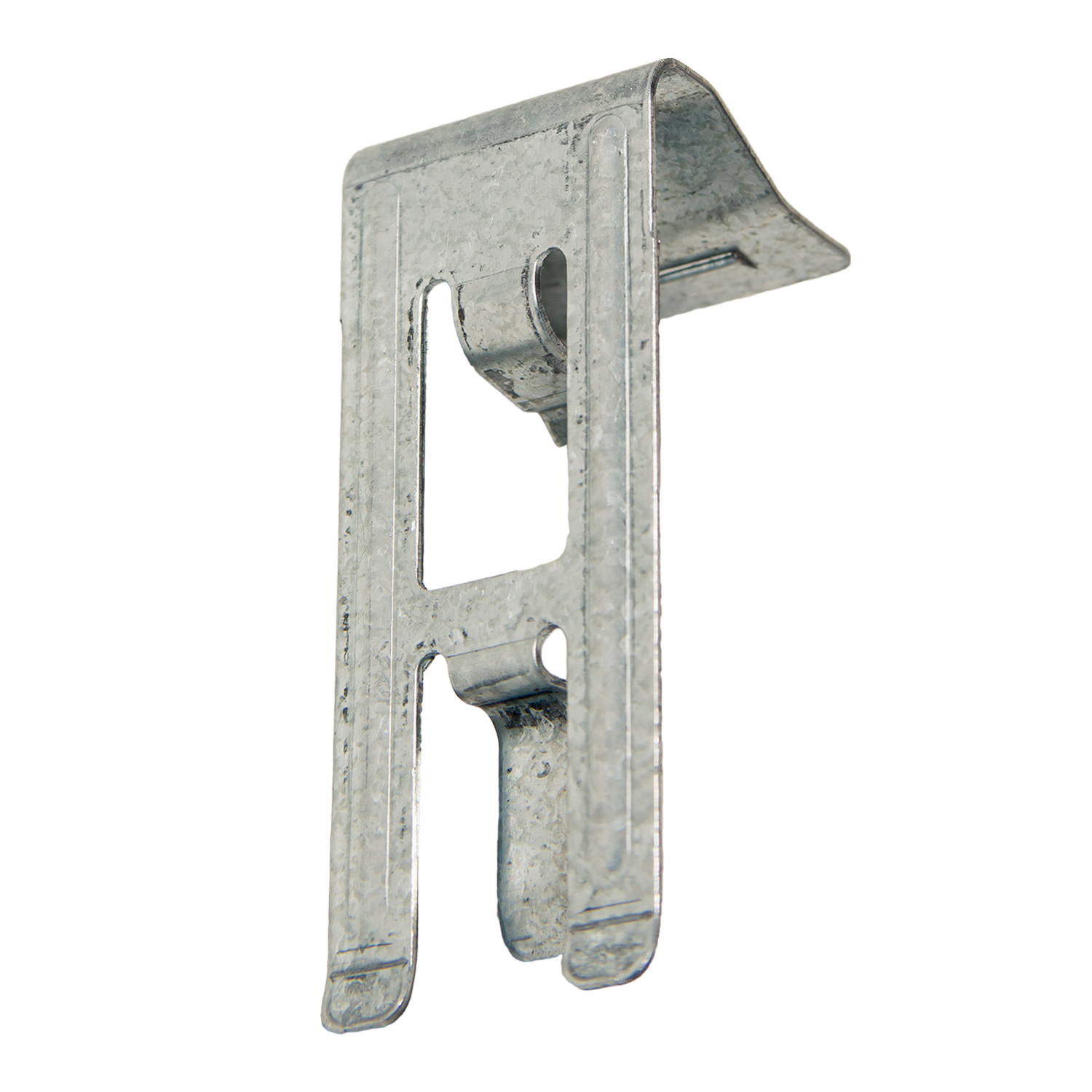

CTB-100: Corner Truss Bracket CTB-100/4: 4 Brackets
PL-6: Ladder
